Description
You look at the wall of your house and think — how do I attach a beam here, without crushing the insulation?

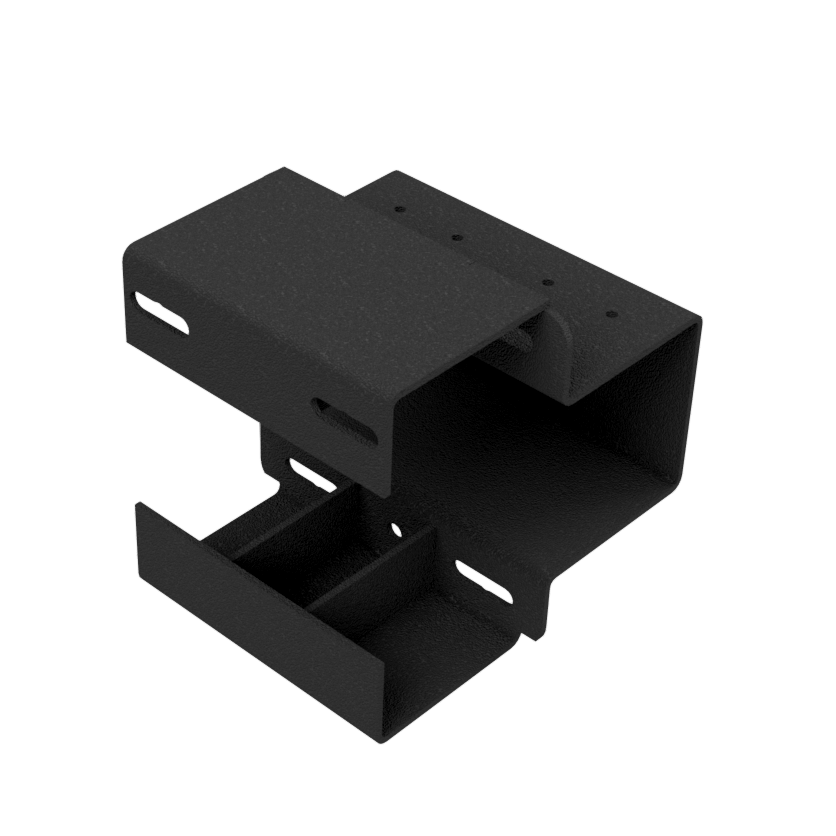

This connector is the answer. Engineered specifically for walls with 10 cm insulation, it reaches through to the hard surface behind — giving your beam a rock-solid foundation, without compromising your thermal envelope.
What You Get:

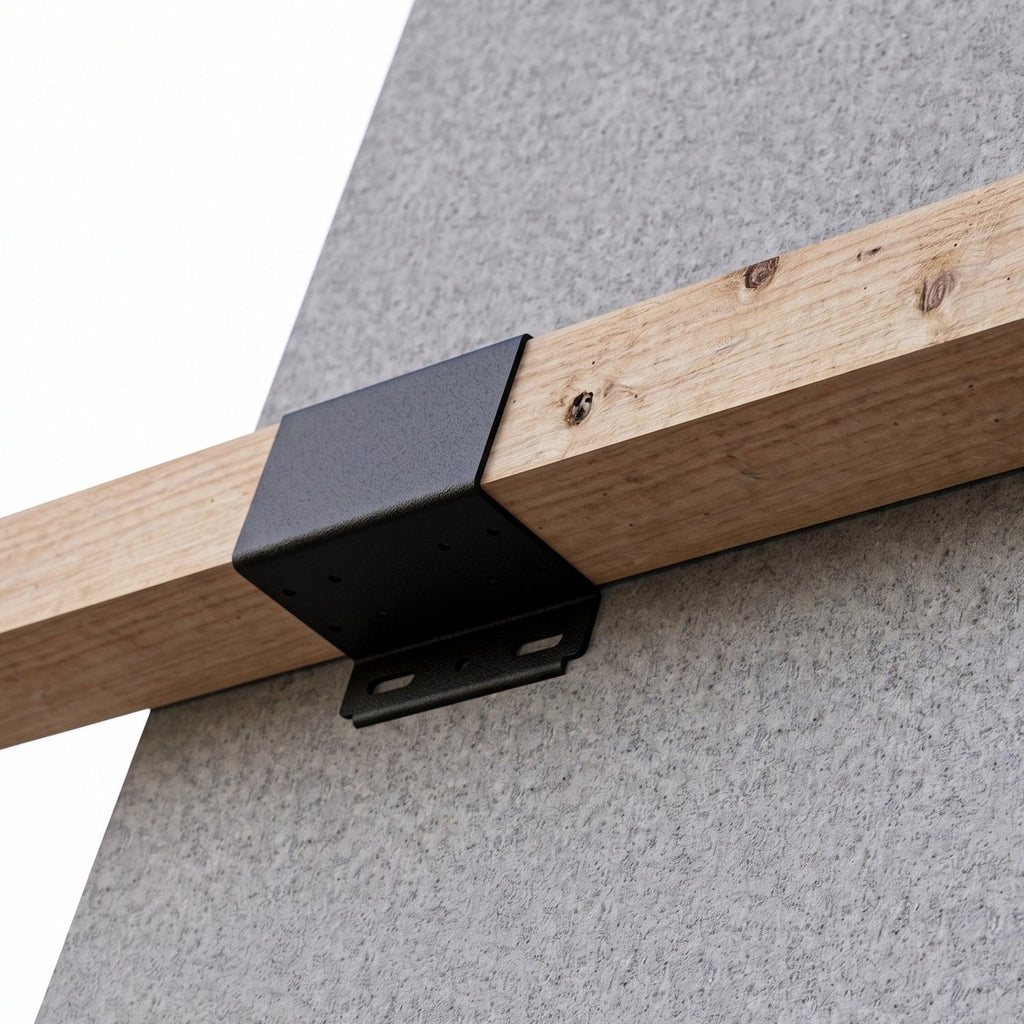

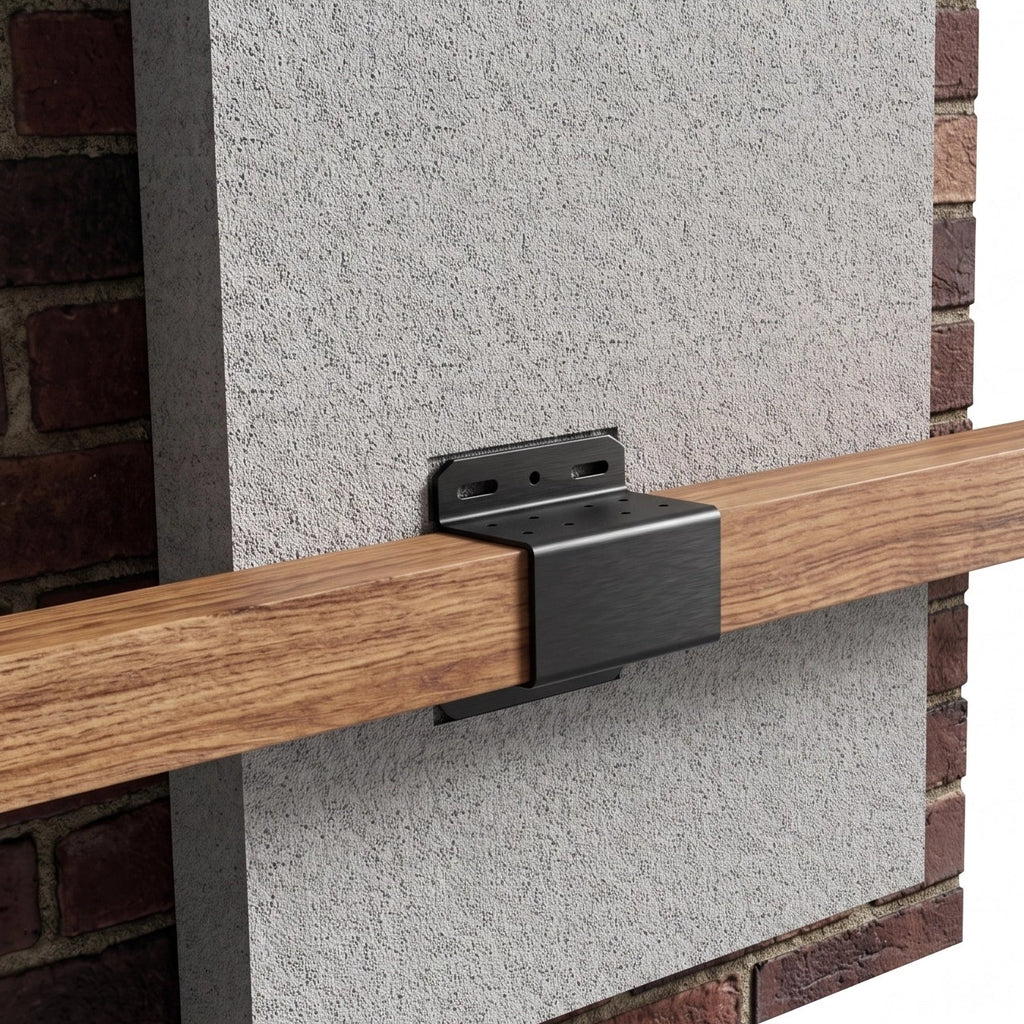

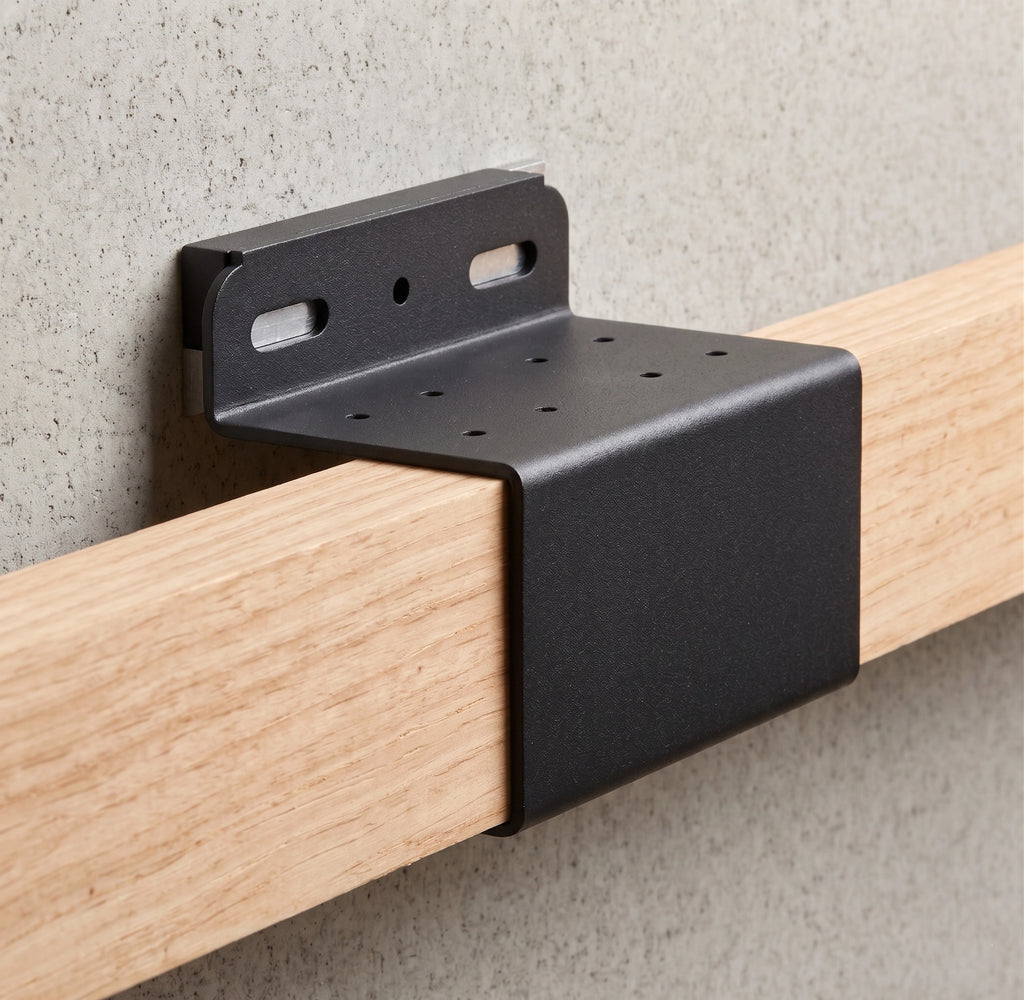

- A solid, load-bearing base for a 10×10 cm KVH timber beam directly on the hard wall surface — no insulation compression
- Only two narrow strips of insulation need to be cut (20×5×10 cm each) — exactly where the bracket flanges pass through
- Secured with chemical anchors through 4 wide holes into the hard surface
- Gaps sealed with low-expansion foam through the central hole — no thermal bridge
- Slide in the beam and lock it — done
Technical Specs:

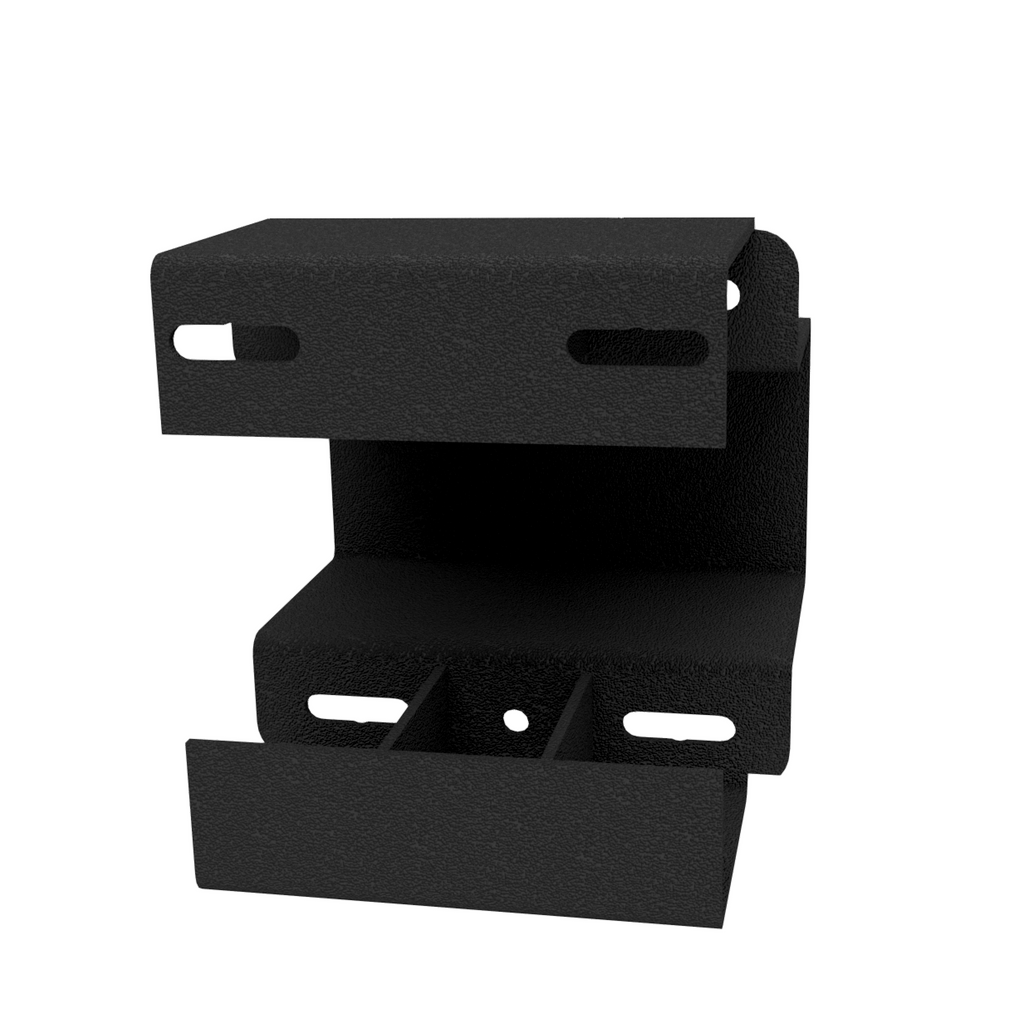

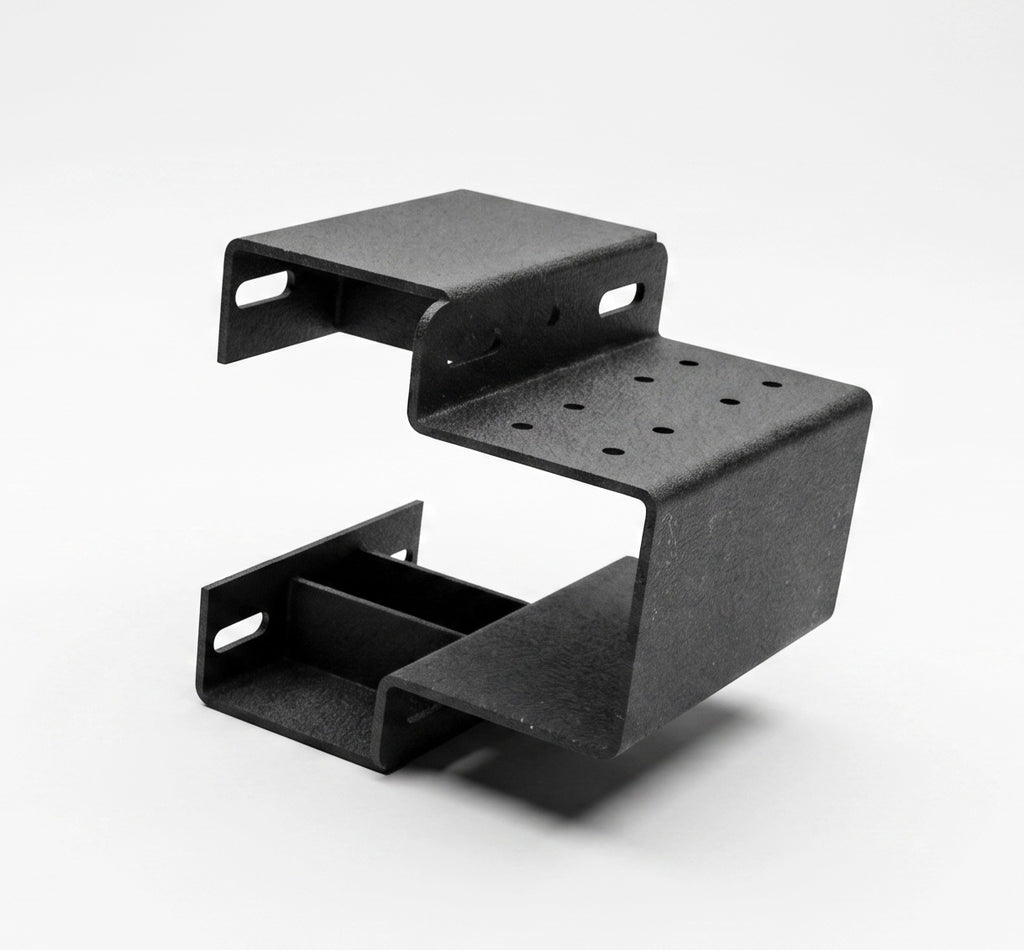

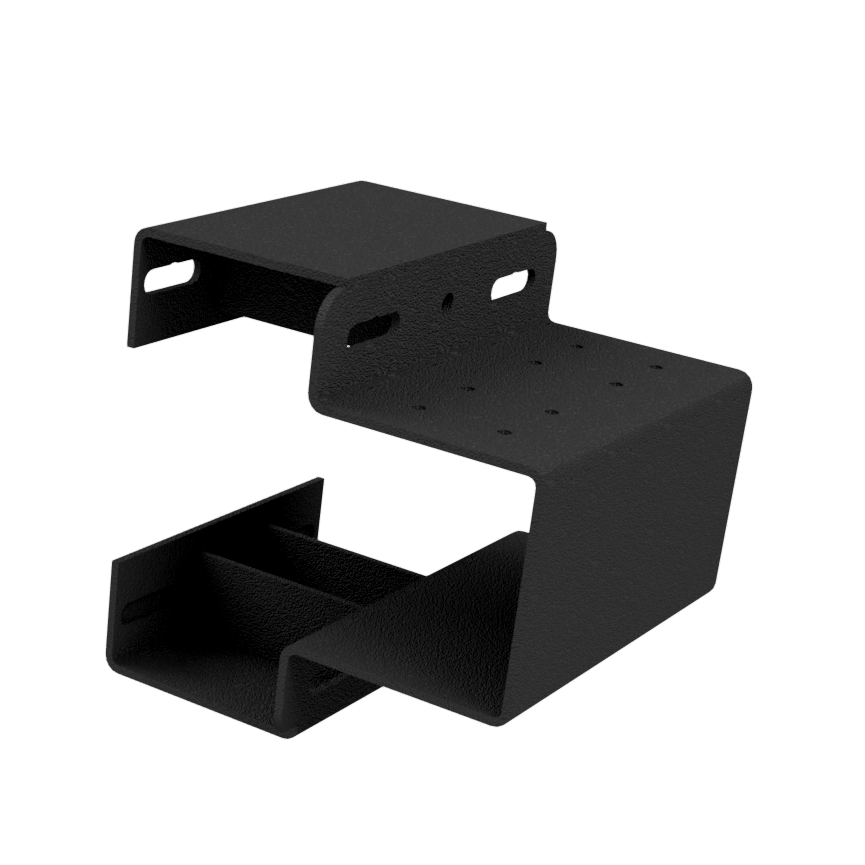

- Material: 4 mm steel with reinforced welded plates
- Finish: matte black powder coat with fine texture
- 6 holes: 4 wide for chemical anchors + 1 central for foam injection
- Compatible with 10×10 cm KVH timber beams
- Designed for walls with 10 cm insulation
Built to last. An investment in peace of mind — once installed, never revisited.
Снимки от нашите клиенти
Вижте как нашите продукти изглеждат в реални условия
Built for Moments Under the Sun.
Your Perfect Pergola Awaits
Create your own beautiful pergola in just one afternoon with LuxShade. Our modular connectors and components are designed for easy assembly—no professional tools or help needed. Built for strength and durability, LuxShade makes it simple to transform your outdoor space into the perfect gathering spot.
Our Product Advantage
Discover why LuxShade connectors stand out from ordinary products
| Features | Our Product Recommended | Ordinary Products |
|---|---|---|
| Beautiful, high-quality welds | ✓ | ✗ |
| Longer arms for maximum stability | ✓ | ✗ |
| Powder coating with protective layer | ✓ | ✗ |
| Compatible and easy-to-assemble connectors | ✓ | ✗ |
| Designed for outdoor durability | ✓ | ✗ |
Cut with Perfection
Each piece is crafted using advanced laser technology for smooth edges, clean lines, and exact dimensions.
Longer Arms
Our connectors are designed with extended arms for maximum stability, keeping your pergola solid and secure in any weather.
Powder-Coated Protection
Each connector is powder-coated with a durable protective layer, ensuring long-lasting resistance to rust, moisture, and sun.
❓Frequently Asked Questions (FAQ)
🛠️ How can I mount a LuxShade pergola?
Our products are designed to be easily mounted by anyone, without requiring a craftsman. Each set includes clear instructions and all necessary parts. For efficient assembly, we recommend teamwork of at least two people.
📏 Can I customize the pergola imensions?
Yes, we offer customized solutions according to your requirements. Send us a drawing or sketch, and we will propose a variant with corresponding connectors.
🧱 What materials are used for connectors?
Our connectors are manufactured from high-quality steel, electrostatically painted to resist moisture, rust and UV rays. They are suitable for long-term outdoor use.
🌦️ Are they suitable for outdoor use?
Yes, all connectors are designed for outdoor conditions – rain, sun, snow and wind do not affect their durability.
🛠️ Can I mount the structure alone?
Yes, each set is designed to be mounted with basic tools – drill, screwdriver and wrench. We provide detailed instructions for each order.
📐 What beam dimensions are compatible?
The compatible beam dimension is specified for each product (for example, 100x100 mm). If you have other dimensions, contact us to find the suitable solution.
🏛️ Is a construction permit necessary?
Usually, it is not necessary. These are light, modular and removable structures. However, we recommend you check with local authorities to be sure.
🧱 How is the structure fixed in the ground?
Our foundation connectors have holes for anchors. You can fix the structure on a concrete foundation or on slabs. If you need assistance, we are here to help you.
